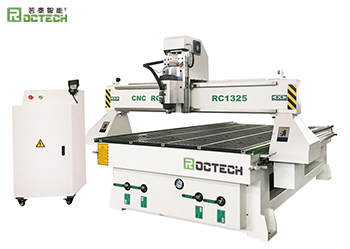

Automatic Tool Changer CNC Router RC1325S-ATC For Cabinets P

Automatic Tool Changer CNC Router RC1325S-ATC For Cabinets P

With 9.0kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry. Except the spindle, we use high quality components on th

Description

(3)_01.jpgcnc router machine for aluminum RC1325S-ATC



Product Description

With 9.0kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.



Except the spindle, we use high quality components on this machine like Japanese Yaskawa servo motors and servo drivers, Taiwan Hiwin linear rails and TBI ball screw, Taiwan Syntec 6MD control system and so on.



We also have some optional parts for you to choose: Chinese or Germany Becker vacuum pump, dust collector, mist cooling system, rotary system and so on. Some main parts on the machine can be changed according to your requirements.



Performance Parameter



NO.

Description

Parameter

1

Table Size

1360×2940mm

2

Traveling Positioning Accuracy

±0.03/300mm

3

X,Y,Z Repositioning Accuracy

±0.03mm

4

Table Surface

Vacuum and  T-slot Combined

5

Frame

Welded Structure

6

Transmission

Rack and Pinion Drive

7

Max. Power Consumption

(Without Spindle)  4.5Kw

8

Max. Rapid Travel Rate

33000mm/min

9

Max. Working Speed

25000mm/min

10

Spindle Power

9.0KW

11

Spindle Speed

0-24000RPM

12

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

13

Command Language

G Code

14

Computer Interface

USB

15

Flash Memory

128M(U Disk)

16

Collet

ER32

17

X,Y Resolution

<0.03mm

18

Software Compatibility

Type3/ Artcam Software

19

Running Environment  Temperature

0 - 45 Centigrade

20

Relative Humidity

30% - 75%

21

Packing Size

3200X2100X2000mm

22

N.W.

1500KG

23

G.W.



          Detailed Photos for CNC RC1325S-ATC Router Machinery

.jpg

           Samples for CNC RC1325S-ATC Router Machinery




Related Products

(3)_07

Our certificate

(3)_11

Company Profile

(3)_02



      Roctech Machinery Co.,Ltd.is committed to the development and manufacturing

of CNC machines. We create the brand ROCTECH in year 2008,and register ROCTECH as

trademark in year 2010.

     Over the past decade,we develop at a rather fast speed and grow,with diversiflied product

types.Our products have been not only well sold all over China but also exported to Europe.

America,Middle East, Russia,India,Southeast Asia,and South America around the world.



(3)_04



       We already have the worlds most advanced production line from raw material processing

to assembly and testing,debugging and calibration,We are able to provide our customers

with optimal numerical solutions.Our major products are as follows which are widely used in

enterprises,woodworking industry and advertising industries.



(4)_04

Packaging & Shipping

(3)_13

Package

Free-fumigation wooden cases or other customized packages.

Delivery Way: LCL(less than container load) or FCL(full container load)



Guarantee & After Sales Service

1. The machine is guaranteed for 12 months.

2. Technical support by phone, email or MSN around the clock.

3. Friendly English version manual and operation video CD disk.

FAQ

 (4)_02



1. Training and Use?
We will supply friendly English operation manual and installation. Customer is warmly welcomed to visit our factory for free training. We can also send engineer to customer’s country to supply training.



2.Guarantee & After-sale Service?
We supply one year warranty under normal use and lifetime technical support.We can provide engineers overseas training.



3. Payment Terms?

T/T in advance and Alibaba Trade Assurance.

4. Documents after shipment?

We will send original documents to you by DHL, including Packing List, Commercial Invoice, Sales Confirmation, Bill of Lading, and other certificates as required by customer.

If you have any questions for Woodworking Machine,please feel free to contact us,you are always welcome!



If you would like to know more about Automatic Tool Changer CNC Router RC1325S-ATC For Cabinets P,electric change tool,cnc router 1325, please contact us!
