5-Axis Machining Center for Composite Materials
Specialized 5-axis CNC Machine for composite materials, offering stable performance and the ability to easily handle complex shapes, curved surfaces, and irregular parts. It balances high efficiency with high precision, meeting production and simple test needs across various industries.
Equipped as standard with a 12kW imported Olipspeed water-cooled spindle, it ensures clean cuts and minimal burring when processing abrasive composites such as carbon fiber, fiberglass, honeycomb materials, and resin-based composites. The spindle is highly durable, supporting long-duration, continuous operation.
Features a carousel tool magazine with 12 tool forks for fast, smooth automatic tool changes. Multiple processes—including drilling, milling, engraving, and cutting—can be completed in a single setup, accelerating the production cycle.
The machine utilizes high-power Yaskawa (Japan) servo motors and drives, delivering ample power, rapid response, and precise positioning. It incorporates imported ball screws and square guide rails to ensure smooth, wear-resistant, and durable transmission.
Suitable for a Wide Range of Composite Materials and Industries
With broad compatibility, the machine processes various composites, including carbon fiber, fiberglass (FRP), foam composites, epoxy resins, and honeycomb sandwich materials. It supports 5-axis simultaneous machining for complex curved surfaces, irregular structures, large molds, and
precision small parts, making it ideal for applications in aerospace components, automotive lightweighting, wind power components, rail transit, creative sculptures, and industrial molds.
Customization Options to Meet Your Specific Needs
Beyond standard machining, processing solutions can be flexibly tailored to your specific workpiece dimensions, structural shapes, precision
requirements, and unique process needs.
| Travel Area | 2000 x 2000 x 1000 ×360°×110° |
| Voltage | 380V, 3-Phase, 60Hz |
| Processing Area | 2000 x 2000 mm |
| Machine Bed | Heavy-duty welded structure |
| Table Surface | T-slot table |
| Spindle | 12kW HSD (or similar) water-cooled spindle |
| X, Y, Z Drive | X & Y: Helical rack and pinion; Z: Ball screw |
| Spindle Power | 12kW |
| Control System | Syntec system 610MA-E with RTCP |
| Inverter | 15kW Delta inverter (380V) |
| Motors | Japan Yaskawa servo motors |
| Drive Mechanism | Ball screw drive |
| Tool Magazine | Optional 6, 12, or 16 carousel tool magazine |

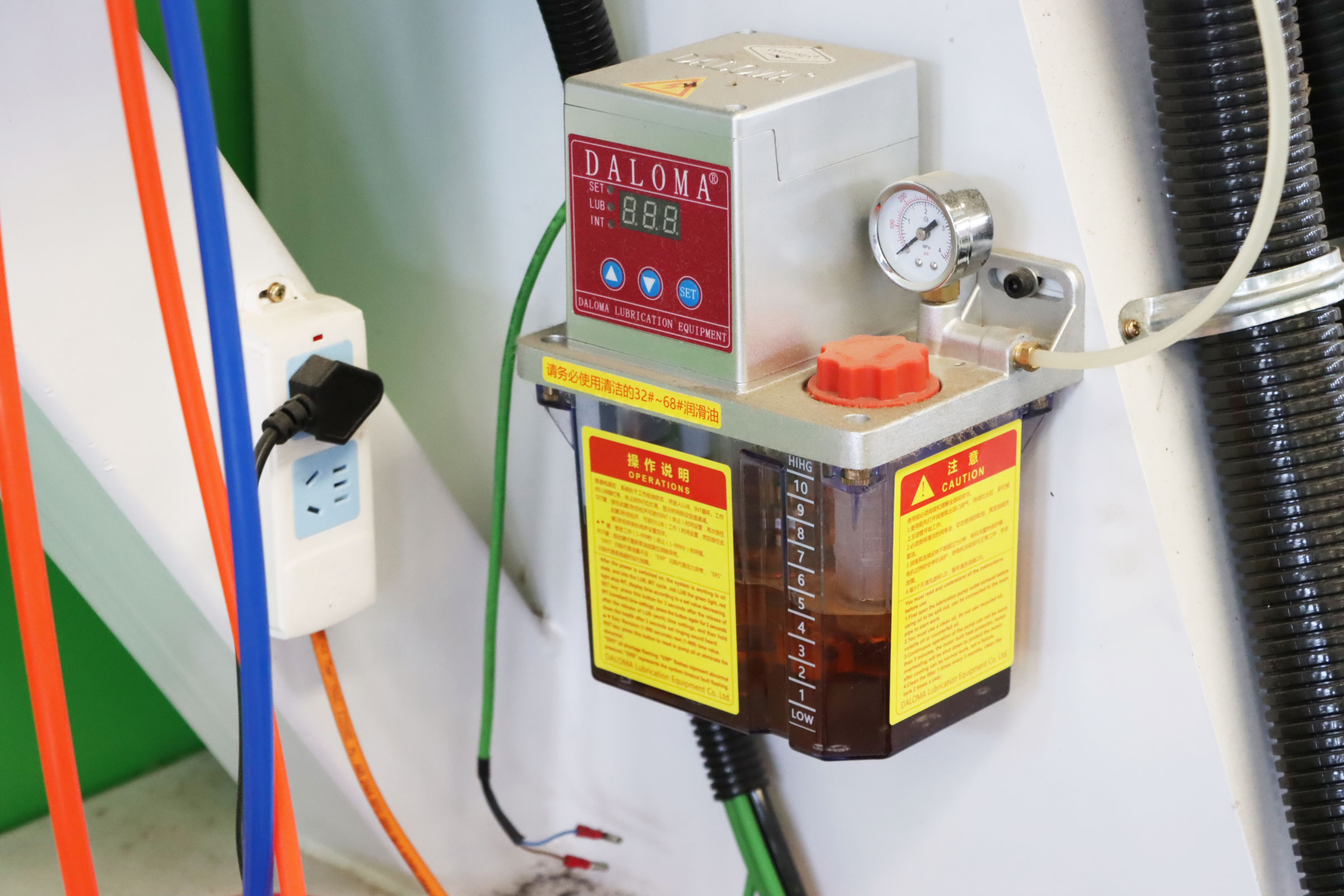

| Lubrication System | Automatic lubrication system |
——— END
Contact us for detailed information of 5-Axis Machining Center for Composite Materials
What is 5-Axis Machining Center for Composite Materials?
What is the cost of 5-Axis Machining Center for Composite Materials?
What is the life span of 5-Axis Machining Center for Composite Materials?
The customer who inquired
- Elizabeth Inquire 28 minutes ago
- James Inquire 9 hours ago
- Sarah Inquire 24 days ago
- Michael Inquire 3 days ago
- Emily Inquire 11 days ago
- William Inquire 7 days ago
- Amelia Inquire 16 days ago
- Benjamin Inquire 25 days ago
- Grace Inquire 2 days ago
- Logan Inquire 1 days ago
- Henry Inquire 18 days ago
- Mia Inquire 12 days ago
- Jackson Inquire 2 days ago
- Charlotte Inquire 8 days ago
- Lucas Inquire 27 days ago
- Amelia Inquire 15 days ago
- Aiden Inquire 27 days ago
- Harper Inquire 25 days ago
- Caden Inquire 7 days ago
- Evelyn Inquire 14 days ago
- Grayson Inquire 13 days ago
Previous：5-Axis CNC Router Machine
Next：Not
Top Reviews
Related Articles
-
Roctech 5-axis Simultaneous Machining CenterThe Roctech 5-axis simultaneous machining center is a high-precision CNC equipment that ac...Sep 02 , 2026 -
ROCTECH 5-Axis CNC Router RCF1325: a strong option for High-Precision Mold ManufacturingIn 's competitive manufacturing landscape, the demand for efficient, precise, and versatil...Sep 02 , 2026 -
Unlocking Precision: Why ROCF1325 is Your Ideal 5-Axis CNC PartnerI want to talk about a tool that's transforming industries, the ROCF1325 5-Axis CNC Router...Sep 02 , 2026 -
The ROCTECH 5-Axis CNC Router RCF1325 Is A Highly Specialized MachineThe ROCTECH 5-Axis CNC Router RCF1325 is a highly specialized machine designed to meet the...Sep 02 , 2026
Core Component Comparison — 5-Axis Machining Center for Composite Materials
| Component | Brand / Specification |
|---|---|
| Spindle | Italian HSD 9.0kW (air-cooled / ATC optional) |
| Servo Motor & Driver | Yaskawa (Japan) |
| Reducer | Shimpo / Apex |
| Controller / CNC System | Taiwan Syntec / LNC |
| Linear Guide | HIWIN / PMI (Taiwan) |
| Inverter (VFD) | Delta (Taiwan) |
| Rack & Pinion | APEX / HERION (Germany) |
| Electrical Parts | Schneider / CHINT |
| Warranty | 2 Years on core parts |
* Typical industrial-grade configuration; final BOM is confirmed by order specification.
Frequently Asked Questions
Q1. What certifications does the 5-Axis Machining Center for Composite Materials have?
The 5-Axis Machining Center for Composite Materials is manufactured under a CE, ISO9001 and FDA certified quality system, ensuring compliance with international safety and quality standards.
Q2. What is the warranty and after-sales support?
We provide a 2-year warranty on core components, lifetime technical support, free remote diagnosis, and a guaranteed supply of original spare parts.
Q3. Can the 5-Axis Machining Center for Composite Materials be customized to my production needs?
Yes. We offer OEM/ODM customization including working size, spindle or laser power, automatic tool changer, rotary axis, and full automation integration based on your material and throughput.
Q4. What is the lead time and shipping method?
Standard models are ready to ship in 15-25 working days. We arrange worldwide sea or air freight with reinforced export packaging and full documentation.
Q5. Do you provide installation and operator training?
Yes. We supply free remote installation guidance, step-by-step training videos, and on-site service is available upon request.
Q6. Are spare parts and consumables available?
Yes. We keep a long-term stock of original spare parts and common consumables and can dispatch them by express worldwide.
