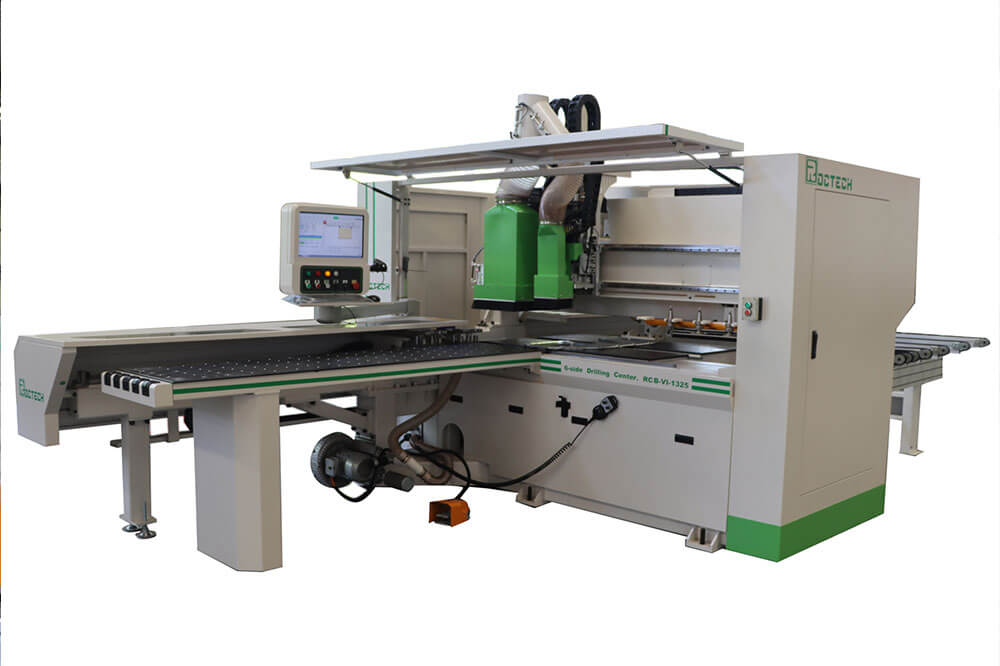

CNC Six -Side Drilling Center

When drilling and loading materials, the CNC Six-Side Drilling Center can be programmed to automatically secure or release materials. CNC Six-Side Drilling Center suppliers and man......

Model:

Category:High Effecient Line

Brand:Roctech®

INQUIRY

TAKE A CLOSER LOOK AT WHAT THIS MACHINE CAN DO

1.The machine is equipped with a 19-inch color screen, wireless keyboard and USB port;The control system is from Japan. The screen can input image and text. It’s very easy to operate;The file format can be designed according to the customer’s production management without drill holes data input. It improves the efficiency of drilling.

2.Automatic fixing device:It is able to automatically fixed or release the material according to the programming, during the drilling and loading material.

3.Automatic Pop-Up position device,It can automatically locate the material’s positioning, according to different size of work piece.

4.Automatic loading device:It is able to put the sheet to the exact positions which be programmed.

PERFORMANCE PARAMETER
Model	CNC six-side drilling center
Spindle Power	2.2kw
Mini Width of Panel	50mm
Max Width of Panel	930mm
Max Thickness of Panel	48mm
Vetical Boring Unit	12(X axis)+13（Y axis）
Horizontal Boring Unit	2left+2right+2front+2behind
Tool shank diameter	10
Working Table Height	1020mm
Working Voltage	AC380V,50/60Hz,3Ph
Working Pressure	0.6-0.8Mpa
Table Power	6KW
Spindle Speed	18000RPM
Gross Weight	3000kg
Dimensions	300057002200mm
