ROCTECH CNC Router 2030

ROCTECH CNC Router 2030

ROCTECH CNC ROUTER 2030 is applicable to the production of doors, cabinets, tables and chairs and other furniture. ROCTECH CNC ROUTER 2030 suppliers and manufacturers have complete......
Model:
Category:CNC Router for Sign Makers
Brand:Roctech®
INQUIRY
TAKE A CLOSER LOOK AT WHAT THIS MACHINE CAN DO

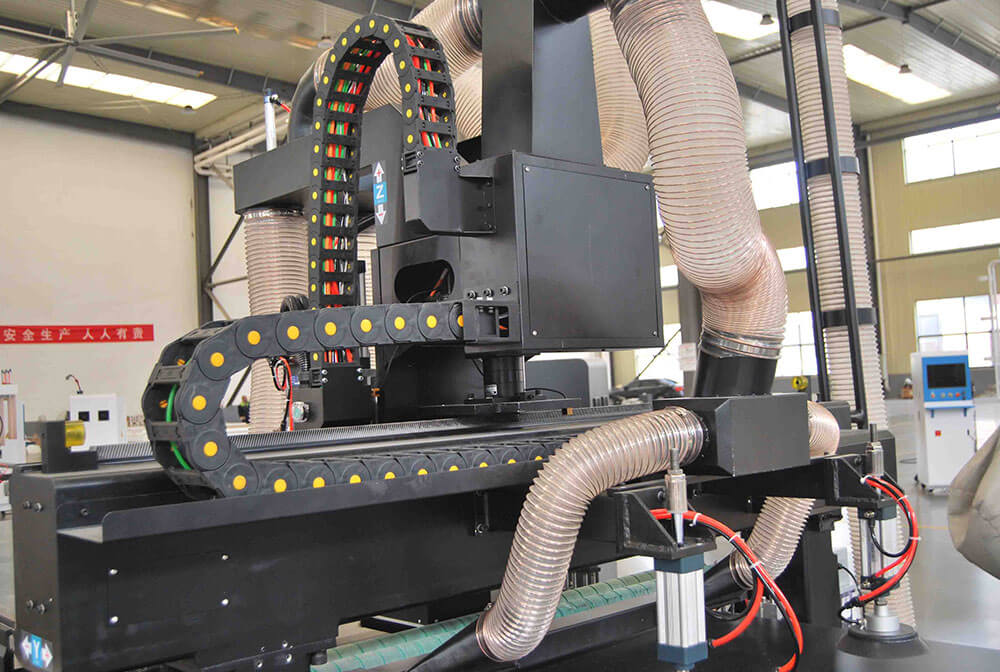

  1. The machine body is made of thick welded steel tubes which have gone through strict tempering and stress relief treatment,not easy to deflect.

  2. DSP control system, Italian air cooling spindle.

  3. Furniture: doors, cabinets, tables and chairs.

  4. Customization special machines are acceptable.

Description

Parameter

X,Y,Z Working Area

2000x3000x200mm

Table size

2000×3000mm

X,Y,Z Traveling Positioning Accuracy±0.03/300mm
X,Y,Z Repositioning Accuracy±0.03mm
Table Surface

Vacuum and T-slot Combined

Frame

Welded Structure

X, Y Structure

Rack and Pinion, Hiwin Linear Rail

Z StructureHiwin Rail Linear and Ball Screw
Max. Power Consumption(Without Spindle) 4.5Kw
Max. Rapid Travel Rate

30000mm/min

Max. Working Speed

20000mm/min

Spindle Power4.5KW
Spindle Speed0-18000RPM
Drive MotorsBig Stepper motor
Working Voltage

AC380V 50/60Hz,3PH

Command LanguageG Code
Operating SystemDSP System
Computer InterfaceUSB
Flash Memory512M(U Disk)
ColletER32
X,Y Resolution<0.03mm
Software CompatibilityArtcam/Type3,JD Software
Running Environment Temperature0 - 45 Centigrade
Relative Humidity30% - 75%
Packing Size

4700*2300*1900mm

G.W.3400KG
